Khoom nta
Cov khoom siv zoo, kev lag luam-kev tsim khoom thiab cov txheej txheem thev naus laus zis yog qhov kev lees paub zoo tshaj plaws.

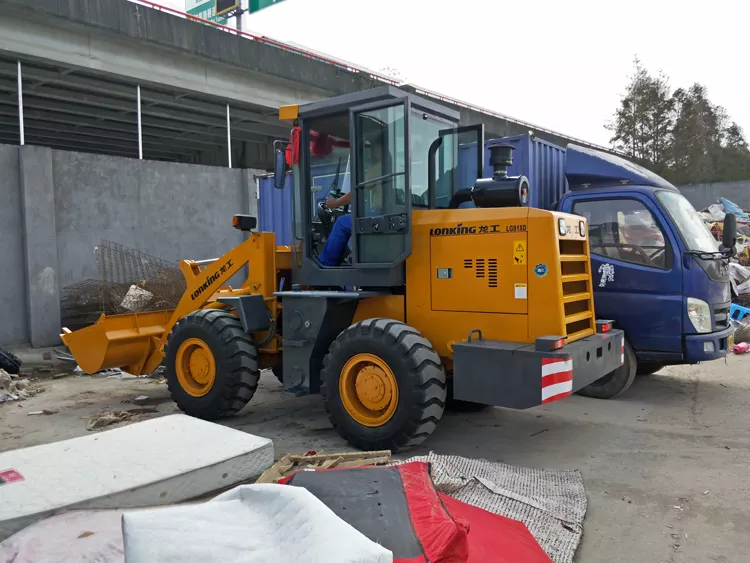

Me Loader 1TON LG818D txais yuav hydraulic kis tau tus mob thiab torque converter kom lub zog kis tau tus mob ntau txhim khu kev qha thiab lub lag luam ntau saj zawg zog.
Loj wheelbase, tsim nyog choj load faib. Loj traction quab yuam thiab breakout quab yuam. Tag nrho lub tshuab mus ncig, thiab kev ua haujlwm ruaj ntseg zoo.
Cov roj tank thiab hydraulic roj tank yog tsim nyog, thiab lub hood yog aerodynamically tsim los ua kom lub cav cua kub dissipation xeev nyob rau hauv ib tug zoo lub xeev. Lub hood qhib rau sab kom yooj yim txij nkawm thiab kho.
Lub qag nram qab tuaj yeem ua viav vias nce thiab nqis ib ncig ntawm qhov chaw, uas muaj kev ua tau zoo ntawm kev ua haujlwm thiab kev ua haujlwm dhau, thiab tsim nyog rau kev tsav tsheb thiab ua haujlwm ntawm txoj kev ntxhib.
Tus pin bushing txais cov qauv kaw, uas yog cov plua plav pov thawj thiab tiv thaiv fouling, thiab txhim kho kev pabcuam lub neej. Tus pin ncej roj chaw nres nkoj yog sab nraud nyob rau kev saib xyuas yooj yim.
Lub Loader Me 1TON LG818D txais yuav cov qauv tsim, nrog lub vojvoog tig me me thiab hloov tau yooj yim, uas tsim nyog rau kev ua haujlwm hauv qhov chaw nqaim.
Me Loader 1TON LG818D txais ib lub twj tso kua mis shunt, uas txuag lub zog thiab txo kev noj, thiab muaj kev ua haujlwm siab.
Lub thav duab qauv txais cov txheej txheem kev txheeb xyuas qhov tseeb, thiab qhov kev ntxhov siab ua haujlwm tau txais cov qauv nrog kev txhim kho rigidity thiab lub zog.
Tus tsim ntawm kev sib txuas pas nrig mechanism ntawm cov cuab yeej ua haujlwm tau ua kom zoo, lub thoob tuaj yeem paub txog qhov tsis siv neeg qib kev ua haujlwm, lub sijhawm ua haujlwm ntawm cov cuab yeej ua haujlwm luv luv, thiab kev ua haujlwm ntawm tag nrho lub tshuab yog txhim kho;
Nruab nrog siab hnav-resistant hniav, kev pab cuam lub neej ntawm lub thoob yog txhim kho.
Muaj ntau yam khoom siv ua haujlwm tshwj xeeb xws li kev txiav ntoo, nyom nyom, thiab ntawv rub tawm tuaj yeem xaiv.
Configuration parameters
Qauv | Me Loader 1TON LG818D | |
Rated thoob peev / dav | m³ / hli | 1.07/2200Welded thoob cov hniav, Sib sau cov hniav thiab cov hniav auxiliary |
Optional thoob peev/dav | m³ / hli | 0.97/2000,0.68/1410,0.58/1200 |
Rated load peev | kg | 1800 |
Max. Sawv zog | kN kev | 52 |
Boom nqa lub sijhawm | s | 4.9 |
Lub sijhawm siv rau kev nqa, thauj khoom thiab tshem tawm, tsaws | s | 9.4 |
Max. Taug kev ceev | Km/h | 20.8 |
Tag nrho qhov hnyav | kg | 5520 |
Zuag qhia tag nrho ntev | mm | 5700 |
dav dav | mm | 2200 |
Tag nrho qhov siab | mm | 2930 |
Max. Tshem tawm qhov siab | mm | 2700 |
Tshem tawm qhov deb | mm | 910 |
Cav qauv | LR4B3ZU22/0625 | |
Rated ceev | r/min | 2200 |
Rated zog | kws | 62.5 |
